AXIS 01857-001 Long-Range PoE Extender Kit, Extends Ethernet and PoE, Connections up to 3,280'

Brand: AXIS Communications
ADI #:Z4-01857001 Model #: 01857-001  Name: AXIS 01857-001 Long-Range PoE Extender Kit, Extends Ethernet and PoE, Connections up to 3,280'
  • Cost efficient
  • Extends Ethernet and PoE connections up to 1000 m (3280 ft.)
  • NEMA TS 2 Compatible, rugged design with extended temperature range

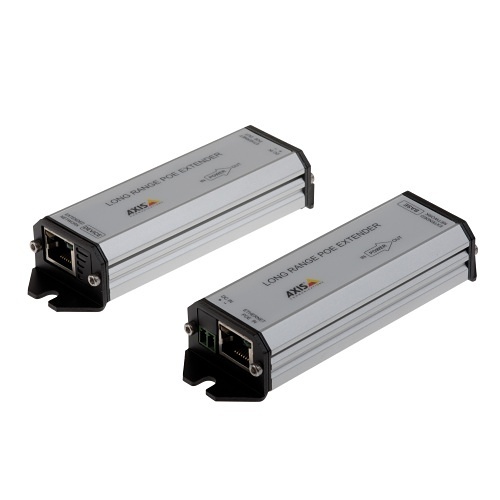

Image of Z4-01857001

Product Overview

AXIS Long range PoE Extender kit offers a smart and easy-to-install solution for extending the range of your network and PoE. Without being restricted by the 100 m (328 ft.) limit for Ethernet cables, Axis network video products can be installed at greater distances. Simply connect AXIS Long range PoE Extender kit in-line with the CAT5e or CAT6 cable and power and data are forwarded to your Axis network devices. AXIS Long range PoE Extender kit supports both IEEE 802.3af and IEEE 802.3at compliant devices. With its rugged design, AXIS Long range PoE Extender kit withstands harsh environmental conditions and challenging temperatures.

General Information

Name : AXIS 01857-001 Long-Range PoE Extender Kit, Extends Ethernet and PoE, Connections up to 3,280' , AXIS Communications
Category : PoE Extenders
UPC Code : 7331021068636
Country of Origin : Taiwan, Province of China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : Z4-01857001
Brand Name : AXIS Communications
Manufacturer : Axis Communications
Manufacturer Part Number : 01857-001
Product Name : AXIS LONG RANGE POE EXTENDER KIT
Product Type : PoE Extenders

Technical Information

Material : Aluminum
Maximum Data Transfer Rate : 12.50 Mbit/s

Certifications

NDAA Compliant : Yes
TAA Compliant : Yes

Environmental Conditions

Operating Temperature (T-T) : -40-70°C

Interfaces/Ports

Network (RJ-45) : Yes

Management & Protocols

Security Features : IEC/EN 62368-1

Power Description

Input Voltage : 57V DC
PoE Budget : 30W
Power over Ethernet (PoE) : Yes

Miscellaneous

Certifications : EAC, EN 50121-4, EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), RCM AS/NZS CISPR 32 Class A, VCCI Class A
Country of Origin : TW
