Product Overview
This multidirectional camera offers four channels with 5 MP per channel to deliver excellent overviews and detailed coverage. It includes 360° IR illumination for clear, reflection-free footage and excellent image quality even in low light or complete darkness. This flexible camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. With highly efficient power consumption, it ensures lower operating costs. It also supports powerful analytics based on deep learning. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, guarantees the device’s integrity and protects it from unauthorized access.
General Information

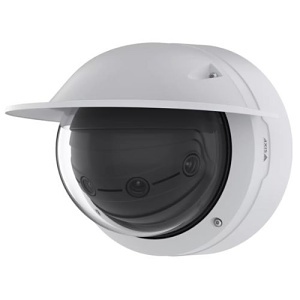

Name : AXIS P3737-PLE x 5MP Multidirectional Panoramic Camera with Deep Learning, 3.2-8.1mm Varifocal Lens (Replaces P3719-PLE) , Axis Communications
Category : Panoramic Cameras
UPC Code : 7331021080638
Country of Origin : Mexico. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-02634001
Brand Name : AXIS Communications
Manufacturer : Axis Communications
Manufacturer Part Number : 02634-001
Product Name : AXIS P3737-PLE
Product Series : P37
Product Type : Fixed dome cameras
Supported Network Protocols : IPv6 USGv6|NIST SP500-267
Technical Information
Aperture : f/1.9-3.24
Effective Camera Resolution : 5MP
Field of View : Horizontal, Vertical
Lens Type : Varifocal
Maximum Aperture : f/1.9-3.2
Maximum Frame Rate : 30fps
Minimum Focal Length : 3.2mm
Night Vision : Yes
Optical Zoom : 2.5x
Video Formats : H.264, H.265, MJPEG, MPEG-4
Camera
Image Sensor Type : CMOS
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP66, IP67
TAA Compliant : Yes
Display & Graphics
Image Sensor Size : 1/2.7"
Maximum Video Resolution : 2592 x 1944
Number of Sensors : 4
Environmental Conditions
Maximum Operating Temperature : 50 deg C
Minimum Operating Temperature : -30 deg C
Operating Humidity : 1
Exposure
Minimum Illumination : 0 lux
Lens
Focal Length : 3.18-8.12mm
Maximum Focal Length : 8.10 mm
Minimum Aperture : f/3.2
Memory
Memory Card Supported : Yes
Physical Characteristics
Color : White
Durability : Dustproof, Impact Resistant, Tamper Resistant, Waterproof
Power Description
Maximum Power Consumption : 23W
Power over Ethernet (PoE) : Yes
Storage
Storage Type : Memory Card/Cloud
Warranty
Limited Warranty : 5-Year
Miscellaneous
Certifications : CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Certifications & Standards : ONVIF G, ONVIF M, ONVIF S, ONVIF T
Country of Origin : MX
Environmental Certification : IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 512.6), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), VDMA 24364
Features : 360 deg IR illumination with individually controlled LEDs, 4 x 2 MP at 30 fps per channel, Axis Edge Vault safeguards the device, Flexible Mounting Options, Support for advanced analytics
Impact Protection Rating : IK09
Indoor/Outdoor : Outdoor
