Product Overview
The 1000 Series electromagnetic locks can be used in harsh environments to secure doors and gates. All electronics are sealed in epoxy and are protected by the Stainless Steel housing cover. The housing, armature and exposed face of the electric lock are nickel plated to resist rust and corrosion. A rigid conduit fitting can be provided on one end of the lock to protect power wiring in gate control installations.
General Information

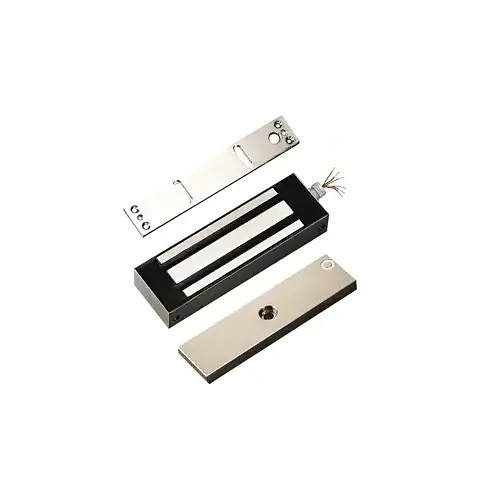

Name : Dortronics 1000XD 1000 Series Industrial Magnetic Lock with Integral Door Position SPDT Switch, 12/24VDC, 1200lb Holding Force, Brushed Stainless Steel , Dortronics
Category : Magnetic Locks
UPC Code : 197163006045
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : 0L-1000XD
Brand Name : Dortronics
Manufacturer Part Number : 1000XD
Packaged Quantity : 2
Product Name : 1000 Industrial Magnetic Lock - Integral Door Position Switch SPDT Weather Proof Sealed
Product Type : Magnetic Lock
Power Description
Input Current : 170mA, 340mA
Input Voltage : 12V DC, 24V DC
Miscellaneous
Package Contents : 1 x Z Bracket, 1 x Angle Bracket with all Mounting Hardware needed to convert a standard 1000 lock into a TJ-1000 for Swinging Gates or Inswing Doors
