AXIS 30W Outdoor Ready IP66-/IP67-Rated Midspan

Brand: AXIS Communications
ADI #:Z4-01944001 Model #: 01944-001  Name: AXIS 30W Outdoor Ready IP66-/IP67-Rated Midspan
  • 100 to 240 V AC
  • IEEE 802.3af and 802.3at
  • Outdoor-ready, IP66/67- and NEMA 4X-rated

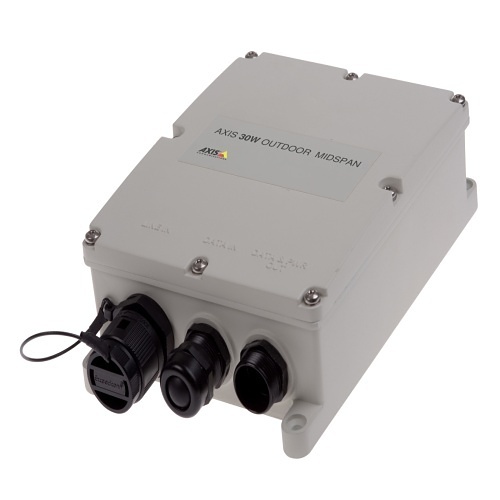

Image of Z4-01944001

Product Overview

Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. A midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS 30 W Outdoor Midspan is compatible with IEEE 802.3af and 802.3at compliant Axis network devices. The midspan ensures safe and reliable operation in outdoor environments. Furthermore, it offers surge protection for both the AC and the PoE ports ensuring protection to the equipment from outdoor surges up to 6kV.

General Information

Name : AXIS 30W Outdoor Ready IP66-/IP67-Rated Midspan , AXIS Communications
Category : PoE Injectors
UPC Code : 7331021069473
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : Z4-01944001
Brand Name : AXIS Communications
Manufacturer : Axis Communications
Manufacturer Part Number : 01944-001
Product Model : 30W
Product Name : AXIS 30W OUTDOOR MIDSPAN
Product Type : Power over Ethernet

Certifications

Ingress Protection Rating : IP67
NDAA Compliant : Yes

Environmental Conditions

Operating Temperature (T-T) : -40-65°C

Interfaces/Ports

Input Ports : 10/100/1000Base-T
Output Ports : PoE

Management & Protocols

Security Features : GS-Mark|IEC/EN 60950-1|IEC/EN 62368-1|IEC/EN 60950-22|UL 60950-1|UL 60950-22

Others

ADI Part Number Replaces : Z4-5030231, Z4-5030234
Model Number Replaces : 5030-231, 5030-234

Physical Characteristics

Depth : 5.5"
Form Factor : Pole Mount, Wall Mount
Height : 2.4"
Width : 6.7"

Power Description

Input Voltage : 120V AC, 230V AC
Maximum Frequency : 60 Hz
Maximum Output Power : 30W
Maximum Output Voltage : 54 V DC
Minimum Frequency : 50 Hz
PoE Budget : 30W
Power over Ethernet (PoE) : Yes

Product Information

Protection Type : Surge Protection

Warranty

Limited Warranty : 3 Year

Miscellaneous

Certifications : EAC, EN 55024, EN 55032 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), RCM AS/NZS CISPR 32 Class B, VCCI Class B
Compatibility : <b>AXIS Door Controllers:</b>, A1001, A1601<b>AXIS Fixed Cameras:</b>, A9161, A9188-VE<b>AXIS Illuminators:</b>, C1310-E, C1410<b>AXIS Thermal Cameras:</b>, D2110-VE Security Radar<b>AXIS Speakers:</b>, F34 Main Unit, F34 Surveillance system, F41 Main Unit, F44 Dual Audio Input<b>AXIS PTZ Cameras:</b>, I8016-LVE<b>AXIS Modular Cameras:</b>, Long Range PoE Extender Kit<b>AXIS Power Over Ethernet:</b>, M1065-L, M1134, M1135, M1135-E, M1137, M1137-E, M1145-L, M2025-LE, M2026-LE Mk II, M3015, M3016, M3037-PVE, M3057-PLVE, M3057-PLVE Mk II, M3058-PLVE, M3064-V, M3065-V, M3066-V, M3067-P, M3068-P, M3075-V, M3077-PLVE, M3115-LVE, M3116-LVE, M3205-LVE, M3206-LVE, M4206-LV, M4206-V, M5054, M5055, M5065, M5525-E, M7104, P1214, P1214-E, P1224-E, P1244, P1245, P1254, P1264, P1265, P1275, P1280-E, P1290-E, P1375, P1375-E, P1377, P1377-LE, P1378, P1378-LE, P1435-LE, P1445-LE-3, P1447-LE, P1448-LE, P1455-LE, P3227-LV, P3227-LVE, P3228-LV, P3228-LVE, P3245-LV, P3245-LVE, P3245-V, P3245-VE, P3247-LV, P3247-LVE, P3248-LV, P3248-LVE, P3255-LVE, P3367-V, P3367-VE, P3374-LV, P3374-V, P3375-LV, P3375-LVE, P3375-V, P3375-VE, P3715-PLVE, P3717-PLE, P3719-PLE, P3807-PVE, P5414-E, P5415-E, P5654-E, P5655-E, P7304, P8815-2<b>AXIS PoE Extenders:</b>, P9106-V, PoE Splitter 5 V<b>AXIS Security Radars:</b>, Q1615 Mk III, Q1615-LE Mk III, Q1645, Q1645-LE, Q1647, Q1647-LE<b>AXIS Fixed Dome Cameras:</b>, Q1941-E, Q1941-E PT Mount, Q1942-E, Q1942-E PT Mount, Q2901-E, Q2901-E PT Mount<b>AXIS Video Encoders:</b>, Q3515-LV, Q3515-LVE, Q3517-LV, Q3517-LVE, Q3517-SLVE, Q3518-LVE, Q3527-LVE, Q3615-VE, Q3617-VE, Q3708-PVE, Q3709-PVE, Q6074, Q6074-E, Q6075, Q6075-E, Q6128-E, Q6154-E, Q6155-E<b>AXIS People Counters:</b>, Q7411, Q7424-R Mk II, Q9216-SLV<b>AXIS Housings:</b>, T90C20 Fixed Dome IR-LED, T90D20 PoE IR-LED, T90D25 PoE W-LED<b>AXIS Intercoms:</b>, T92E20 Outdoor Housing, T92G20 Outdoor Housing, T93F20 Outdoor Housing<b>AXIS I/O Relay Modules:</b>
Country of Origin : CN
Environmental Certification : IEC/EN 60529 IP67, NEMA 250 Type 4X
Package Contents : <ul> <li>30W Outdoor Midspan</li> <li>Installation Guide</li> </ul>
