Name: AXIS Q6225-LE Heavy-Duty PTZ Camera with Long-Range IR
Brand: Axis Communications
SKU: Z4-02316002
Price: $0.00

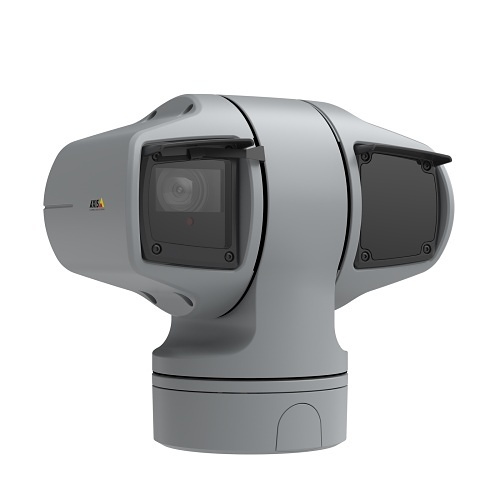

AXIS Q6225-LE Heavy-Duty PTZ Camera with Long-Range IR

Brand: Axis Communications

ADI #:Z4-02316002 Model #: 02316-002 Name: AXIS Q6225-LE Heavy-Duty PTZ Camera with Long-Range IR

1/2" sensor and long-range OptimizedIR
AXIS Object Analytics preinstalled
Electronic image stabilization

Product Overview

This heavy-duty PTZ camera meets the MIL-STD-810G standard, ensuring reliable operation in the toughest conditions. It offers HDTV 1080p resolution and a 1/2" sensor with 31x optical zoom. Featuring Lightfinder, Forensic WDR, and OptimizedIR it ensures sharp, clear images in any light conditions. This vandal-resistant, IK10-rated camera is resistant to both impacts and harsh weather conditions including wind speed up to 245 km/h (150 mph). It comes with built-in analytics preinstalled to alert you when needed. Additionally, Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements without compromising image quality.

General Information

Name : AXIS Q6225-LE Heavy-Duty PTZ Camera with Long-Range IR , Axis Communications
Category : PTZ Security Cameras
UPC Code : 7331021075856
Country of Origin : Poland. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : Z4-02316002

Brand Name : AXIS Communications

Manufacturer Part Number : 02316-002

Product Model : Q6225-LE

Product Name : AXIS Q6225-LE 50 Hz EUR

Product Type : PTZ cameras

Supported Network Protocols : IPv6 USGv6

Technical Information

Aperture : f/1.36-4.6

Effective Camera Resolution : 2MP

Field of View : Horizontal, Vertical

Lens Type : Varifocal

Maximum Frame Rate : 60 fps

Minimum Focal Length : 6.70 mm

Night Vision : Yes

Camera

Image Sensor Type : CMOS

Night Vision Distance : 1312.34 ft

Wide Dynamic Range : Yes

Certifications

Ingress Protection Rating : IP66, IP68

Display & Graphics

Image Sensor Size : 1/2"

Maximum Video Resolution : 1920 x 1080

Environmental Conditions

Operating Temperature (T-T) : -50-55°C

Exposure

Minimum Illumination : 0.001 lux

Lens

Focal Length : 6.91-214.69mm

Maximum Focal Length : 201 mm

Memory

Memory Card Supported : Yes

Others

ADI Part Number Replaces : Z4-01442004, Z4-01442018, Z4-02516001

Model Number Replaces : 01442-004, 01442-018, 02516-001

Physical Characteristics

Durability : Vandal Resistant

Power Description

Input Voltage : 240V AC

Maximum Power Consumption : 71W

Power over Ethernet (PoE) : Yes

Miscellaneous

Certifications : CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A

Certifications & Standards : ONVIF G, ONVIF M, ONVIF S, ONVIF T

Environmental Certification : IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP68, IEC/EN 62262 IK10, ISO 12944-6 C5, ISO 21207 (Method B), MIL-STD-810G (Method 500.5), MIL-STD-810G (Method 501.5), MIL-STD-810G (Method 502.5), MIL-STD-810G (Method 503.5), MIL-STD-810G (Method 505.5), MIL-STD-810G (Method 506.5), MIL-STD-810G (Method 507.5), MIL-STD-810G (Method 509.5), MIL-STD-810G (Method 510.5), MIL-STD-810G (Method 521.3), MIL-STD-810H (Method 500.6), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Features : PTZ, Wide Dynamic Range

Impact Protection Rating : IK10

Indoor/Outdoor : Outdoor
