Product Overview

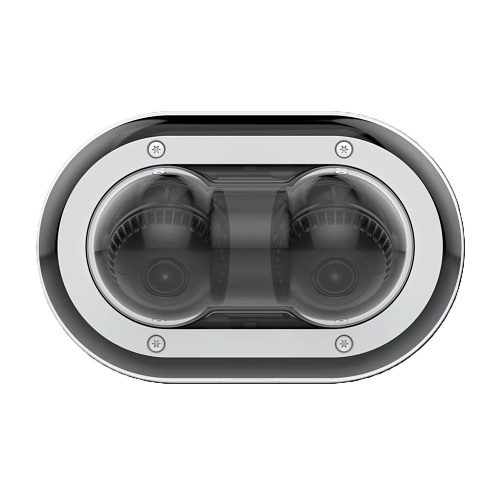

This dual-sensor, multidirectional camera offers 2*2 MP at 30 fps. It features Lightfinder and Forensic WDR for sharp, clear images in challenging or poor light conditions. Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit enabling improved processing and storage capabilities. It also allows you to collect and analyze even more data than before – on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. And, with flexible positioning of both varifocal camera heads plus, remote zoom and focus capabilities, it ensures fast and cost-effective installation.
General Information
Name : AXIS P4705-PLVE 2x2MP Dual-Sensor 360˚ IR Camera with Lightfinder, 3-6mm Lens, White (Replaces P3715-PLVE) , AXIS Communications
Category : Panoramic Cameras
UPC Code : 7331021076952
Country of Origin : Poland. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-02415001
Brand Name : AXIS Communications
Manufacturer Part Number : 02415-001
Product Line : Panoramic
Product Name : AXIS P4705-PLVE
Product Series : P47
Product Type : Fixed dome cameras
Supported Network Protocols : IPv6 USGv6|NIST SP500-267
Technical Information
Aperture : f/1.9-3.24
Connectivity Technology : Wired
Effective Camera Resolution : 2MP
Field of View : Horizontal, Vertical
Lens Type : Varifocal
Maximum Aperture : f/1.9
Maximum Frame Rate : 60 fps
Minimum Focal Length : 3.26 mm
Night Vision : Yes
Optical Zoom : 2.5x
Video Formats : H.264, H.265, MJPEG, MPEG-4
Camera
Image Sensor Type : CMOS
Night Vision Distance : 49.21 ft
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP66, IP67
Display & Graphics
Image Sensor Size : 1/2.8"
Maximum Video Resolution : 1920 x 1080
Environmental Conditions
Maximum Operating Temperature : 122°F (50°C)
Minimum Operating Temperature : -22°F (-30°C)
Operating Temperature (T-T) : -30-50°C
Exposure
Minimum Illumination : 0 lux
Lens
Focal Length : 3.26-8.12mm
Maximum Focal Length : 8.12 mm
Minimum Aperture : f/3.2
Memory
Memory Card Supported : Yes
Physical Characteristics
Color : White
Durability : Vandal Resistant
Form Factor : Panoramic
Height : 3.5"
Product Color : Black, White
Weight (Approximate) : 2.15 lb
Width : 5.2"
Power Description
Maximum Power Consumption : 17W
Power over Ethernet (PoE) : Yes
Product Information
Length : 8.2"
Mount Type : Ceiling Mount, Conduit Mount, Gang Box Mount, Junction Box Mount, Tripod Mount, Wall Mount
Storage
Recording Formats : Full HD
Miscellaneous
Certifications : CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Certifications & Standards : ONVIF M, ONVIF T
Country of Origin : PL
Environmental Certification : IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 512.6), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)
Features : Day/Night, HTTPS Encryption, Human Detection, Motion Detection, Password Protection, Privacy Masking, SD Card Local Storage, Vehicle Detection, Video Management System, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : Outdoor
