Product Overview

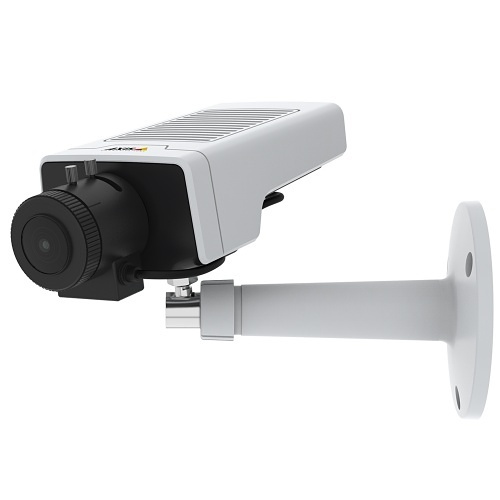

AXIS M1135 Mk II is an affordable, compact box camera that’s easy to install and operate. It supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera's CS-mount enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.
General Information
Name : AXIS M1135 Mk II Box Camera, 2MP , Axis Communications
Category : Box Cameras
UPC Code : 7331021079663
Country of Origin : Poland. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-02580001
Brand Name : AXIS Communications
Manufacturer Part Number : 02580-001
Product Name : AXIS M1135 MK II i-CS
Product Series : M11
Product Type : Fixed cameras
Supported Network Protocols : IPv6 USGv6|NIST SP500-267
Technical Information
Aperture : f/1.8
Built-in Microphone : Yes
Connectivity Technology : Wired
Effective Camera Resolution : 2MP
Field of View : Horizontal, Vertical
Lens Type : Varifocal
Maximum Aperture : f/1.4
Maximum Frame Rate : 30 fps
Minimum Focal Length : 3.50 mm
Night Vision : Yes
Optical Zoom : 2.9x
Camera
Image Sensor Type : CMOS
Wide Dynamic Range : Yes
Display & Graphics
Image Sensor Size : 1/2.9"
Maximum Video Resolution : 1920 x 1080
Environmental Conditions
Maximum Operating Temperature : 122°F (50°C)
Minimum Operating Temperature : -4°F (-20°C)
Operating Temperature (T-T) : -20-50°C
Exposure
Minimum Illumination : 0.03 lux
Lens
Focal Length : 3.5-10mm
Maximum Focal Length : 10 mm
Memory
Memory Card Supported : Yes
Others
ADI Part Number Replaces : Z4-01768001, Z4-01768021, Z4-01768041, Z4-01979001, Z4-01979041
Model Number Replaces : 01768-001, 01768-021, 01768-041, 01979-001, 01979-041
Physical Characteristics
Color : Black, White
Depth : 5.9"
Height : 2.5"
Width : 2.8"
Power Description
Input Voltage : 28V DC
Maximum Power Consumption : 7W
Power over Ethernet (PoE) : Yes
Product Information
Mount Type : Box Mount, Screw Mount, Tripod Mount
Miscellaneous
Certifications : EN 55024, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Certifications & Standards : ONVIF G, ONVIF M, ONVIF S, ONVIF T
Country of Origin : PL
Environmental Certification : IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78
Features : Active Tampering Alarm, Audio Compression, Audio Detection, Built-in Microphone, Day/Night, Face Detection, Human Detection, Motion Detection, Vehicle Detection, Video Content Analytics, Wide Dynamic Range
