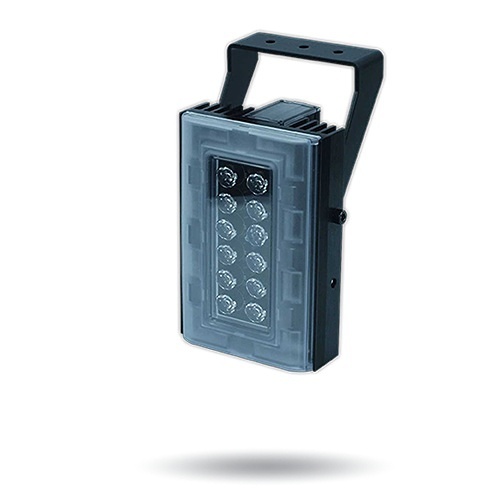

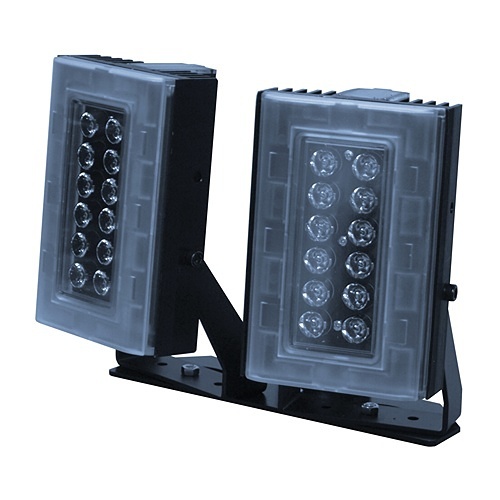

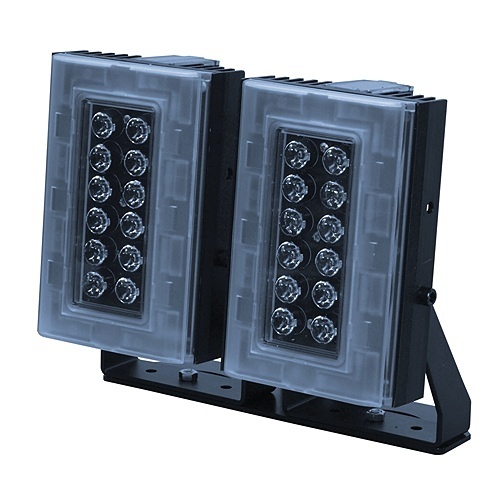

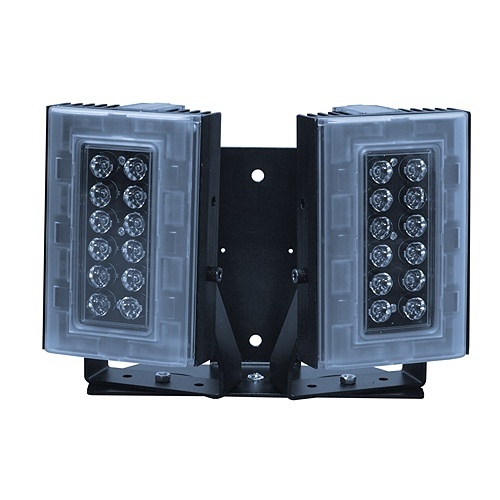

Digital Watchdog DW-ILHYBIP940 NightWatch IR and White Light LED IP-Enabled Hybrid Illuminator

Brand: Digital Watchdog
ADI #:6K-ILHYBIP94 Model #: DW-ILHYBIP940  Name: Digital Watchdog DW-ILHYBIP940 NightWatch IR and White Light LED IP-Enabled Hybrid Illuminator
  • Hybrid Infrared and white light LED illuminator
  • Interchangeable lens pack for a variety of angles out of the box
  • Direct integration with DW Spectrum IPVMS
DW DW-ILHYBIP940 NightWatch� IR & White Light LED IP-Enabled Hybrid Illuminator

Product Overview

The DW-ILHYBIP850 and DW-ILHYBIP940 are IP-enabled infrared (IR) and white light (WL) LED outdoor illuminator. The hybrid illuminator incorporates the latest surface mount Dual-Core LEDs, combined with enhanced optical output and outstanding reliability to provide users with a smart concealed and deterrent lighting solution for a wide range of applications.

General Information

Name : Digital Watchdog DW-ILHYBIP940 NightWatch IR and White Light LED IP-Enabled Hybrid Illuminator , Digital Watchdog
Category : Illuminators
UPC Code : 812226033805
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : 6K-ILHYBIP94
Brand Name : Digital Watchdog
Manufacturer : Digital Watchdog
Manufacturer Part Number : DW-ILHYBIP940
Product Line : SiteWatch
Product Name : NightWatch IR/White Light Illuminator
Product Type : IR/White Light Illuminator

Technical Information

Color Rendering Index : 70
Color Temperature : Ultra white ≈ 6000K
Light Output : 1800 lm
Maximum Detection Range : 98.5'
Video Formats : H.264, MJPEG

Certifications

Ingress Protection Rating : IP66
NDAA Compliant : Yes
TAA Compliant : Yes

Environmental Conditions

Operating Temperature (T-T) : -58-122°F

Physical Characteristics

Application/Usage : Outdoor
Color : Black
Depth : 3.1"
Dimensions : 4.33" x 6.34" x 3.07"
Durability : Impact Resistant
Height : 4.3"
Power Cable Length : 3.28'
Weight (Approximate) : 3 lb
Width : 6.3"

Warranty

Limited Warranty : 2 Year

Miscellaneous

Certification : CE|FCC|IEC/EN 60529|IEC/EN 62262
Country of Origin : US
Features : Surface Mount, Wall Mountable
Impact Protection Rating : IK09
Indoor/Outdoor : Outdoor
