Product Overview

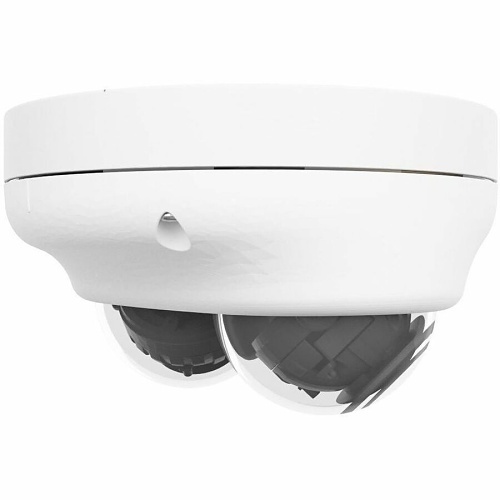

This NDAA/TAA-compliant MEGApix Ai IP camera provides two 5MP channels at real-time 30fps with an Ai edge engine onboard one channel, placing the power of AI deep learning object detection at your fingertips. The dual-sensor vandal dome camera offers two independently adjustable cameras in one housing for a simplified installation.
General Information
Name : Digital Watchdog DWC-PDS10WI28A MEGApix Ai 10MP IP Dual-Sensor Vandal Dome Camera, 2.8mm Fixed Lens, White , Digital Watchdog
Category : Dome Cameras
UPC Code : 812226038145
Specifications
General Information
ADI Part Number : 6K-PDS10WI28
Brand Name : Digital Watchdog
Manufacturer Part Number : DWC-PDS10WI28A
Product Line : MEGApix Ai
Product Type : Network Camera
Supported Browsers : Google Chrome, Microsoft Edge, Mozilla Firefox, Safari
Supported Network Protocols : IPv4
weight : 1.49 lb
Technical Information
American Wire Gauge : 18AWG
Built-in Microphone : Yes
Connectivity Technology : Wired
Effective Camera Resolution : 10MP
Field of View : Horizontal, Vertical
Illumination Distance : 50'
Lens Type : Fixed
Material : Aluminum die-cast
Maximum Frame Rate : 30 fps
Minimum Focal Length : 2.8 mm
Motion Detection : Yes
Night Vision : Yes
Output Voltage : 12V DC
Programmable : Yes
Protocols : DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP)
Video Formats : H.264, H.265
Audio
Audio Encoding : G.711
Memory Card Slot : Yes|1TB
Camera
Image Sensor Type : CMOS
Night Vision Distance : 50 ft
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP67
TAA Compliant : Yes
Display & Graphics
Image Sensor Size : 1/2.8"
Maximum Video Resolution : 2592 x 1944
Environmental Conditions
Maximum Operating Temperature : 122°F (50°C)
Minimum Operating Temperature : -4°F (-20°C)
Operating Humidity : 10-90% (Non-condensing)
Operating Temperature (T-T) : -4-122°F
Exposure
Minimum Illumination : 0.0 lux (B/W)|0.13 lux (color)
Shortest Shutter Speed : Off|x10|x2|x3|x5|x6|x7.5
Aspect Ratio : 4:3
Lens
Focal Length : 2.8 mm
Focus Modes : Auto, Manual
Maximum Focal Length : 2.80 mm
Media & Performance
Network Technology : 10 Base-T Ethernet, 100 Base-T Ethernet
Physical Characteristics
Color : White
Durability : Weather Resistant
Form Factor : Dome, Panoramic
Height : 5.5"
Weight (Approximate) : 1.49 lb
Width : 3.1"
Power Description
Frequency : 50Hz
Input Voltage : 12V DC
Product Information
Mount Type : Ceiling Mount, Corner Mount, Junction Box Mount, Pendant Mount, Pole Mount, Wall Mount
TBD
Amperage : 826mA
Warranty
Limited Warranty : 5-Year
Miscellaneous
Certification : CE|FCC|NDAA|ONVIF|TAA|UL Listing
Features : 3D Digital Noise Reduction, Alarm Detection, Auto Flip, Auto Gain Control, Built-in Web Server, Cross Line Detection, Day/Night, Defog, Enter/Exit Detector, Mirror, Motion Detection, SD Card Local Storage, Smart IR, Tamper Detection, Wide Dynamic Range
Impact Protection Rating : IK10
