Telguard TG-7FE Universal Dual Path, LAN Internet and 5G LTE-M, Commercial Fire Cellular Alarm Communicator, AT&T

Brand: Telguard
ADI #:AD-TG7FEA Model #: TG-7FE-A  Name: Telguard TG-7FE Universal Dual Path, LAN Internet and 5G LTE-M, Commercial Fire Cellular Alarm Communicator, AT&T
  • Certified for use on the AT&T 5G LTE-M network for nationwide coverage in the US. In Canada, coverage is provided by Rogers, Telus, and Bell Mobility.
  • Dual communication paths - If the Internet connection is interrupted or the LAN goes down, always-on 5G LTE-M cellular will immediately step in
  • Powers directly from the fire panel's 12V/24V auxiliary power supply or via plug-in transformer (included)

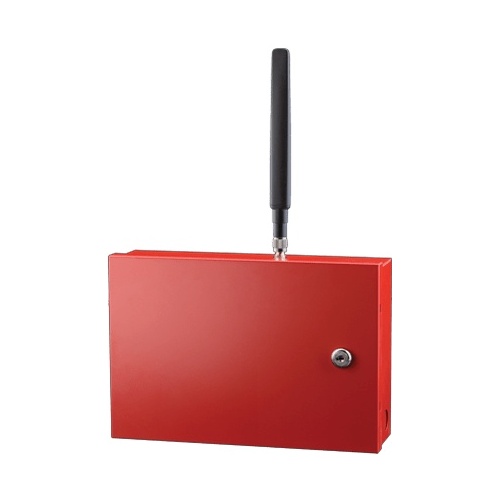

Image of AD-TG7FEA

Product Overview

The Telguard TG-7FE Universal Dual Path Commercial Fire Cellular Alarm Communicator offers the best in fire alarm communications by providing two separate pathways to reliably transmit signals: a wired LAN connection to the Internet and 5G LTE-M cellular. The Telguard TG-7FE (designed for AT&T) can work as a dual path communicator prioritizing LAN or Cell, as well as work as a sole path cellular device that meets UL 864 requirements. The always-active cellular connection ioffers nationwide coverage on the AT&T network, allowing for remote troubleshooting even when internet service is down. In Canada, it uses Rogers, Telus, and Bell Mobility for coverage. It’s highly configurable to meet the requirements of any AHJ, and no one makes a communicator with as many features that works with as many panels and formats.

General Information

Name : Telguard TG-7FE Universal Dual Path, LAN Internet and 5G LTE-M, Commercial Fire Cellular Alarm Communicator, AT&T , Telguard
Category : Alarm Communicators
UPC Code : 702054304140
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : AD-TG7FEA
Brand Name : Telguard
Manufacturer : Telular Corporation
Manufacturer Part Number : TG-7FE-A
Product Line : Telguard Commercial Fire
Product Model : TG-7FE-A
Product Name : Dual Path Internet and 5G LTE-M Commercial Fire Communicator - AT&T
Product Series : TG-7 Fire
Product Type : Dual Path, Fire Alarm Communicator

Technical Information

Cellular Generation : 5G LTE-M
Connectivity Technology : Wired, Wireless
Power Consumption : 18mA|110mA

Network & Communication

Ethernet : Yes

Physical Characteristics

Color : Red
Depth : 3.5"
Height : 7.5"
Width : 11.5"

Power Description

Input Voltage : 24V DC

Miscellaneous

Additional Information : Compatible Formats: CID, SIA, Pulse (4x2, 3x1), Radionics (IIe/3a2,4), DMP Antenna: 50? TNC connector (female) Available Accessories High gain and directional antennas Varying lengths of antenna cables TG-PEM Power & Expansion Module
Compatibility : AT&T
