Specifications
General Information
ADI Part Number : Z4-01633001
Brand Name : AXIS Communications
Manufacturer : Axis Communications
Manufacturer Part Number : 01633-001
Product Model : T8504-R

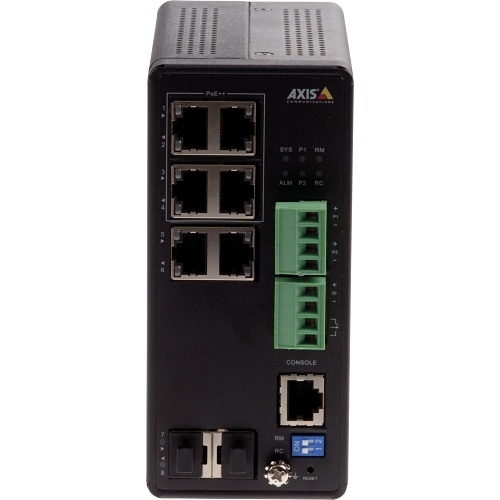

Product Name : AXIS T8504-R INDUSTRIAL POE SWITCH
Product Series : T85
Product Type : Network Switches
Technical Information
Material : Aluminum
Power Consumption : 60W
Certifications
NDAA Compliant : Yes
TAA Compliant : Yes
Environmental Conditions
Operating Temperature (T-T) : -40-75°C
I/O Expansions
Number of SFP Slots : 2
Interfaces/Ports
Output Ports : 4 x 10/100/1000Base-T
Total Number of Network Ports : 4
Uplink Port : Yes
Management & Protocols
Manageable : Yes
Security Features : IEC/EN 60950-1|IEC/EN 62368-1|UL 60950-1
Media & Performance
Network Technology : 10/100/1000Base-TX
Network & Communication
Ethernet Technology : Ethernet
Networking Standards : IEEE 802.3at
Physical Characteristics
Color : Black
Depth : 5.1"
Height : 5.3"
Width : 2.4"
Power Description
Input Voltage : 48-57V DC
Maximum Output Power : 240W
Maximum Power Consumption : 10W
PoE Budget : 240W
Power Source : PoE
Product Information
Mount Type : Desktop Mount
Warranty
Limited Warranty : 5 Year
Miscellaneous
Certifications : EAC, EN 50121-4, EN 55024, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, FCC Part 15 Subpart B Class A, ICES-003 Class A, IEC 62236-4, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Compatibility : <b> Devices:</b>, <b>Bridges</b>, A1601<p><b>Door Stations </b></p>A8105-E<p><b>Fixed Cameras </b></p>M1065-L, A9188, A9188-VE<p><b>Illuminators</b></p>T90D20 PoE IR-LED, C8033<p><b>Desktop Terminals </b></p>S9101, F34 Main Unit, F34 Surveillance system, F41 Main Unit, F44 Dual Audio Input, FA54 Main Unit<p><b>PTZ Cameras </b></p>M5054, M1124, M1124-E, M1125, M1125-E, M1145-L, M2025-LE, M2026-LE Mk II, M3016, M3024-LVE, M3025-VE, M3026-VE, M3027-PVE, M3037-PVE, M3044-V, M3045-V, M3046-V, M3047-P, M3048-P, M3057-PLVE, M3058-PLVE, M3104-L, M3104-LVE, M3105-L, M3105-LVE, M3106-L Mk II, M3106-LVE Mk II, M5055, M5065, M5525-E, P1214, P1214-E, P1224-E, P1244, P1245, P1254, P1264, P1265, P1275, P1364, P1364-E, P1365 Mk II, P1365-E Mk II, P1367, P1367-E, P1368-E, P1435-LE, P3224-LV Mk II, P3224-V Mk II, P3225-LV Mk II, P3225-LVE Mk II, P3225-V Mk II, P3225-VE Mk II, P3227-LV, P3227-LVE, P3228-LV, P3228-LVE, P3235-LV, P3235-LVE, P3367-V, P3367-VE, P3374-LV, P3374-V, P3375-LV, P3375-LVE, P3375-V, P3375-VE, P3707-PE, P3807-PVE, P3904-R Mk II, P3905-R Mk II, P3905-RE, P3915-R Mk II, P5414-E, P5415-E, P5624-E Mk II, P5635-E Mk II, P8804, P9106-V, Q1615 Mk II, Q1615-E Mk II, Q1645, Q1645-LE, Q1647, Q1647-LE, Q1659, Q1765-LE, Q1765-LE PT Mount<p><b>Fixed Dome Cameras </b></p>M3015, Q3515-LV, Q3515-LVE, Q3517-LV, Q3517-LVE, Q3517-SLVE, Q3518-LVE, Q3527-LVE, Q3615-VE, Q3617-VE, Q3708-PVE, Q3709-PVE, Q6000-E Mk II, Q6054 Mk III, Q6054-E Mk III, Q6055, Q6055-E, Q6124-E, Q6125-LE, Q6128-E, Q6155-E, Q8414-LVS<p><b>I/O relay modules </b></p>A9161, Q8641-E, Q8642-E, Q8685-E, Q8685-LE, Q8741-E, Q8741-LE, Q8742-E, Q8742-LE<p><b>Positioning Units </b></p>T99A10 Positioning Unit 24 V AC/DC, S9201<p><b>Door Controllers </b></p>A1001, T90D25 PoE W-LED, T90D30 PoE IR-LED, T90D35 PoE W-LED<b>Modular Cameras</b>, T99A11 Positioning Unit 24 V AC/DC<p><b>Radar Detectors </b></p>D2050-VE https://www..com/products/-t8504r-industrial-poe-switch
Country of Origin : TW
Environmental Certification : IEC 60068-2-27, IEC 60068-2-6, NEMA TS 2 (2.2.7-2.2.9)
Environmentally Friendly : Yes
