Product Overview
This cost-effective PTZ camera offers great image quality in HDTV 1080p with 21x optical zoom and wide area coverage with 77° field of view. Thanks to Lightfinder 2.0 and Forensic WDR, it provides true colors and great detail in challenging light or near darkness. Including Axis Object Analytics, it can detect and classify people and vehicles- all tailored to specific needs. With IP66, NEMA 4X, and IK10 ratings, this robust and resistant camera can handle temperatures ranging from -30 °C to 50 °C (-22 °F to 122 °F). Furthermore, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.
General Information

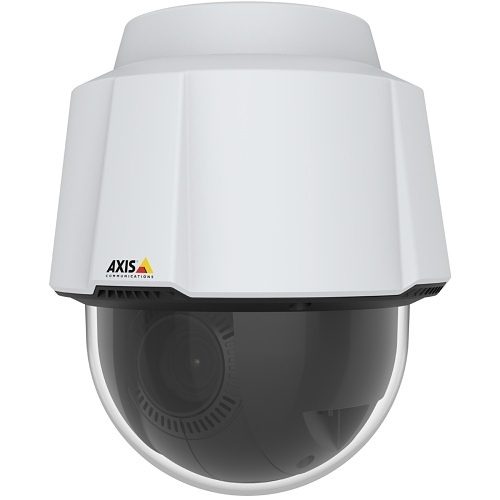

Name : AXIS P5654-E Mk II PTZ IP Camera, HDTV 1080p with 21x Optical Zoom, 4-84.6mm Lens, 60 Hz , Axis Communications
Category : PTZ Security Cameras
UPC Code : 7331021086272
Country of Origin : Mexico. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-02915001
Brand Name : AXIS Communications
Manufacturer Part Number : 02915-001
Product Line : P
Product Name : AXIS P5654-E Mk II 60 Hz
Product Series : P56
Product Type : PTZ cameras
Supported Network Protocols : IPv6 USGv6|NIST SP500-267
Technical Information
Aperture : f/1.6-4.5
Effective Camera Resolution : 4MP
Field of View : Horizontal, Vertical
Lens Type : Varifocal
Maximum Frame Rate : 60 fps
Minimum Focal Length : 4 mm
Night Vision : Yes
Optical Zoom : 21x
Camera
Image Sensor Type : CMOS
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP66
TAA Compliant : Yes
Display & Graphics
Image Sensor Size : 1/2.8"
Maximum Video Resolution : 1920 x 1080
Environmental Conditions
Maximum Operating Temperature : 122°F (50°C)
Minimum Operating Temperature : -22°F (-30°C)
Operating Temperature (T-T) : -30-50°C
Exposure
Minimum Illumination : 0.01 lux
Lens
Focal Length : 4.0-84.6mm
Maximum Focal Length : 84.60 mm
Memory
Memory Card Supported : Yes
Physical Characteristics
Color : White
Durability : Dustproof, Impact Resistant, Shock Resistant, Waterproof
Form Factor : Dome
Power Description
Input Voltage : 240V AC
Maximum Power Consumption : 16W
Power over Ethernet (PoE) : Yes
Product Information
Diameter : 5.9"
Mount Type : Ceiling Mount
Miscellaneous
Certifications : CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Certifications & Standards : ONVIF G, ONVIF M, ONVIF S, ONVIF T
Country of Origin : MX
Environmental Certification : IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X
Features : Auto Tracking, Day/Night, Defog, HTTPS Encryption, Human Detection, Privacy Masking, Vehicle Detection, White Balance, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : Outdoor
