Product Overview

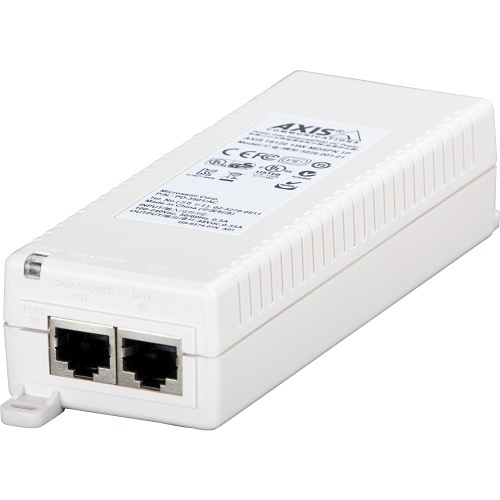

Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. A midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS T8120 Midspan 15 W 1-port is a compact and flexible solution for your PoE-based network devices. AXIS T8120 delivers up to 15.4 W and it is IEEE 802.3af compliant and, which ensures compatibility with most of Axis network products that have built-in support for PoE.
General Information
Name : AXIS T8120 1-Port Midspan 15W, White , AXIS Communications
Category : PoE Injectors
UPC Code : 7331021003408
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-5026204
Brand Name : Axis Communications
Manufacturer : Axis Communications
Manufacturer Part Number : 5026-204
Product Model : T8120
Product Name : AXIS T8120 15W MDSPN 1P < US >
Product Series : T81
Product Type : Power over Ethernet
Environmental Conditions
Operating Temperature (T-T) : 0-40°C
Interfaces/Ports
Output Ports : Ethernet
Management & Protocols
Security Features : IEC/EN 62368-1|IS 13252
Media & Performance
Data Transfer Rate : 10 Mbps, 100 Mbps, 1000 Mbps
Network & Communication
Networking Standards : IEEE 802.3af
Others
ADI Part Number Replaces : Z4-0226004
Model Number Replaces : 0226-004
Physical Characteristics
Color : White
Depth : 5.7"
Form Factor : Self Mount, Wall Mount
Height : 1.2"
Width : 2.4"
Power Description
Input Voltage : 110V AC, 220V AC
Maximum Frequency : 63 Hz
Maximum Input Current : 0.5 A
Maximum Output Power : 15.4W
Maximum Output Voltage : 48V DC
Minimum Frequency : 47 Hz
Minimum Input Current : 500 mA
Product Information
Mount Type : Wall Mount
Warranty
Limited Warranty : 3 Year
Miscellaneous
Compatibility : Video EncodersAxis Network Cameras:PTZPTZ Dome
Country of Origin : CN
Environmental Certification : CE, FCC, TUV
Environmentally Friendly : Yes
